Manufacturing & Production Machinery
Bottle Blowing Machine
Rs 1000000 to 2000000
Ex-Bhaktapur. Delivery, installation and training quoted with the machine.
- Output
- 800 to 1000 pcs/hr
- Power
- 380V
What it produces
Rated at 800-1,000 pieces per hour
Per day
—
Per month
—
Per year
—
An estimate from the rated figure above, not a guarantee — real output depends on the material, the operator and the power supply. Ask us what to expect.

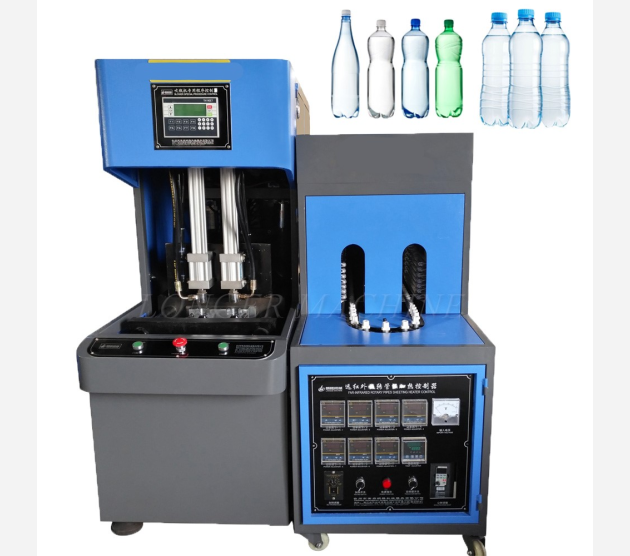

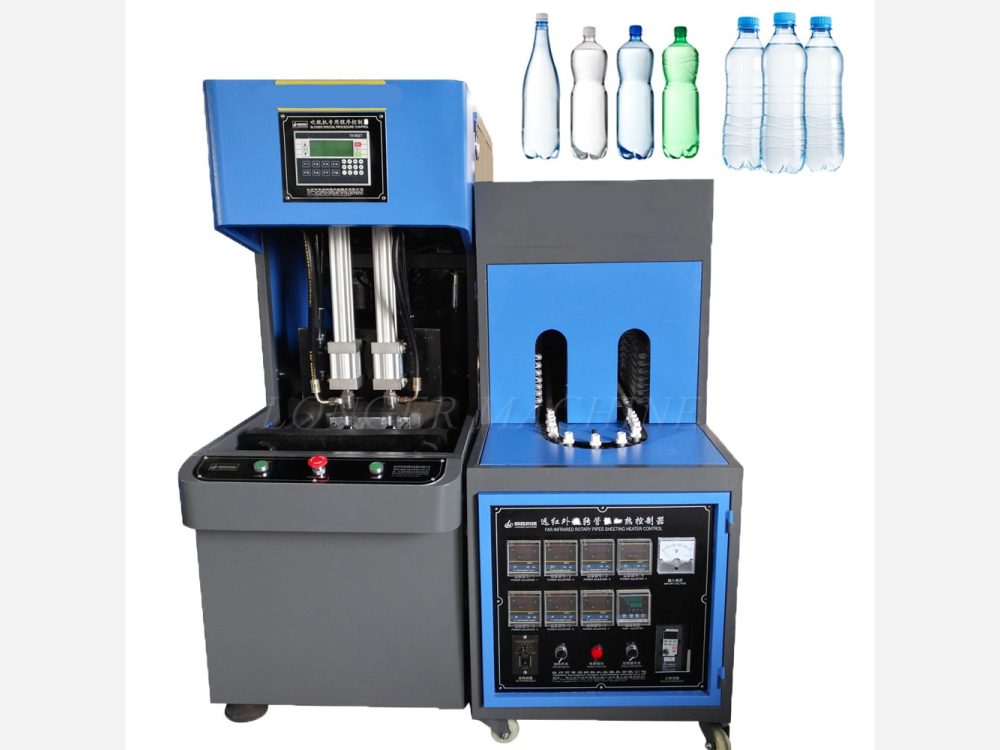

About this machine
250 ml to 1000 ml size bottle blowing mahcine
Semi auto bottle blowing Machine: Host+heater (Covering an area of 3.5 square meters) (Volume: 5 m3) Output according to bottle type 700-800PCS/H Product specification Bottle body diameter 20mm-100mm Bottle body height 50mm-340mm Bottle mouth diameter 15mm-100mm Mold cavity 2 Die thickness 110~230mm Opening stroke 160mm Mainframe power supply voltage 380v 3Phase/220V 3Phase 50/60HZ Installed capacity power/actual use power 16kw/7-10kw Air source High pressure air compressor 1.2m3/min 3.0MPa Cold dryer 2.0m3/min 3.0MPa 1set Cooling water cooling capacity 15L/min Dimensions of host: length, width, height/weight: 1700 * 700 * 800mm/650kg Oven size L, W, H/weight 1800 * 640 * 1620mm/350kg
High pressure air compressor: 30kg 1.2 displacement (Covering an area of 1.9 square meters)
Dryer: 1.6 m3/30 kg (Covering an area of 0.6 square meters) (volume 0.6 m3)
Bottle Mould
See it running
